8-channel single detection zone microfluidic concept
This concept combines 8 independent channels into one detection zone employing 8 AOIs (Areas of Interest). This reduces the cost of the microfluidic device significantly as compared to 8 single channel units.
Microfluidic "sipper" concept
This is a concept for a 4-channel emulsification microfluidic consumable. It employs an off the shelf optical grade 24 well plate with a conceptual gasketed microfluidic tray adapter system.
Microfluidic "sipper" concept

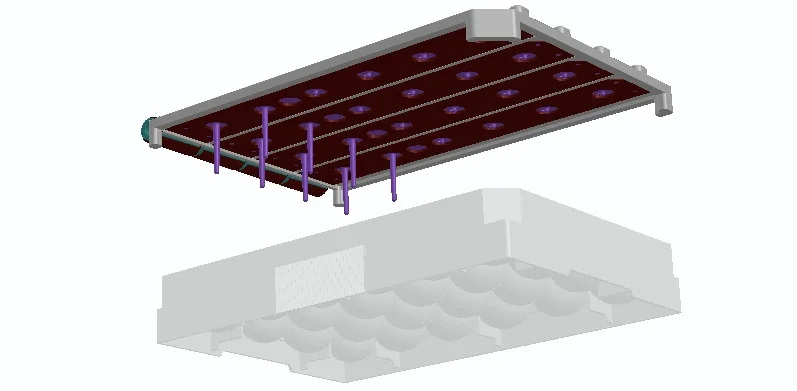

Microfluidic tray exploded view
Microfluidic "sipper" concept
2 channel merged "sipper" inlet, 4 channel outlet
Microfluidic "sipper" concept
Gasket clip detail

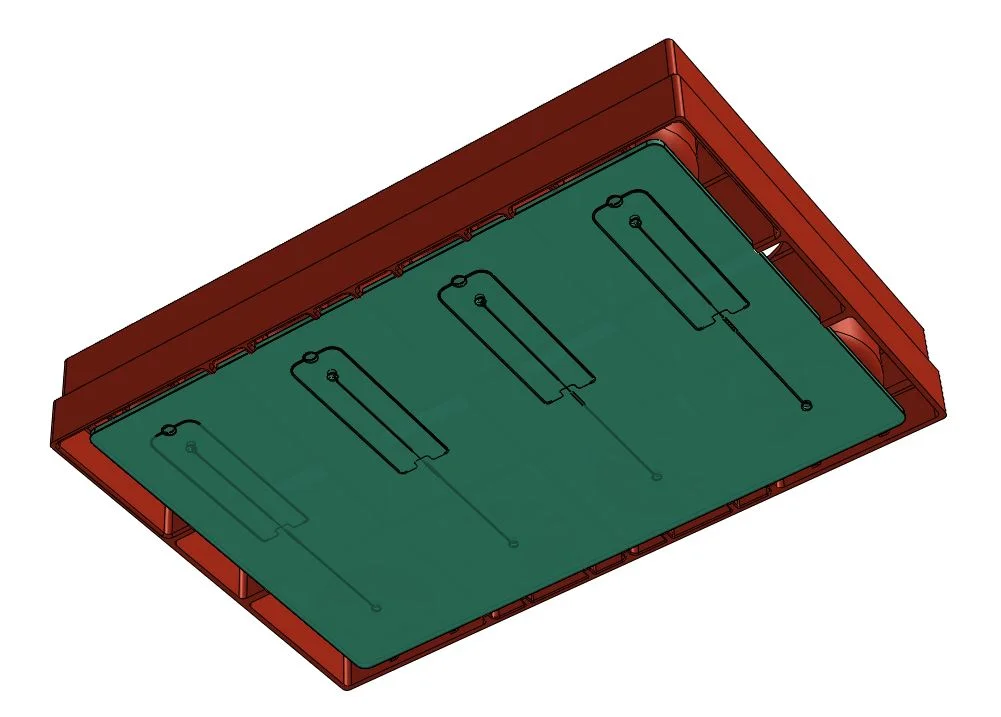

Bonded well-plate concept
This concept bonds the microfluidic device directly to the bottom of a custom well plate.
